Packer assembly M1-X

Order

Ask a Question

Annually various types of products are awarded with high-quality marks in «The Best Goods and Services of the Republic of Tatarstan» and «100 Best Products in Russia» competitions.

Hit

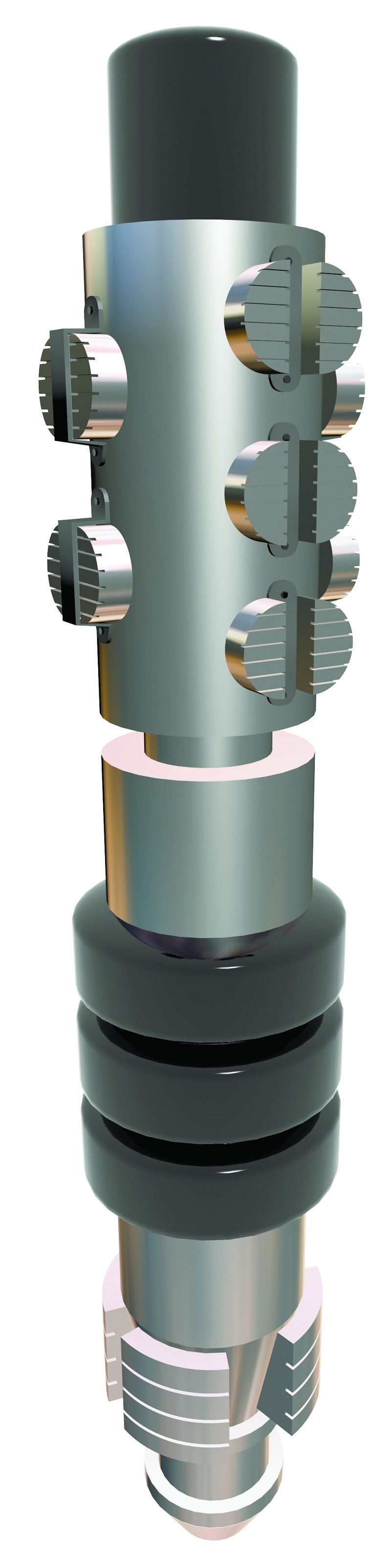

TMC Group Managing Company LLC manufactures and supplies a packer assembly M1-X.

Details

Purpose

The M1-X production packer, installed mechanically by compression or tension seating, is a retrievable packer allowing the tubing to be in tension, compression, or neutral position. This packer is specially intended for operation in aggressive downhole fluids during production and injection.

Field of application

This packer is specially designed for use in production and injection wells, as well as in isolation of individual zones and a number of service operations upon well workover.

The service life of packers, taking into account the permanent location of the packer in the well, is up to 10 years.

Advantages

Additional tension seating method allows the packer to be used at shallow depths.
Three assembly options available: standard pressure of 517 atm, large bore and high pressure of 690 atm.
The tubing hanger can be left in a tension, compression, or neutral position.
Holds the differential pressure above and below the packer.
Seating by clockwise rotation, releasing by clockwise rotation.
Bayonet seating and releasing mechanism of J-slot type.
Internal bypass duct.
The seal below the top wedges allows washing away the accumulated sludge during the packer release process.

Characteristics

Packer specification

Packer type size	Outside diameter of production string, mm	Wall thickness of roduction string, mm	Inside diameter of roduction string (min.), mm	Inside diameter of roduction string (max.), mm	Outside diameter of the packer (max), mm	Inside diameter of the Packer (min), mm	Connecting thread (coupling (collar) – top – nipple bottom-)
5-1/2	146	7,7 – 9,5	127	130,6	122,2	59,9	2-7/8 EU 8Rd
6-5/8	168	8,94 – 10,59	147	150,4	142	59,9	2-7/8 EU 8Rd
