More than 60 options for completing pipeline protection systems against corrosion and heat losses
Application
For construction of pipelines transporting coolant with a temperature up to 140°C.
Field of application
• heat supply systems
• water supply system
• transportation of high-viscosity oil and oil products
Diameter range from 32 to 325 mm
Operating temperature up to +360 °С
Heat loss reduction by 2.5÷3 times

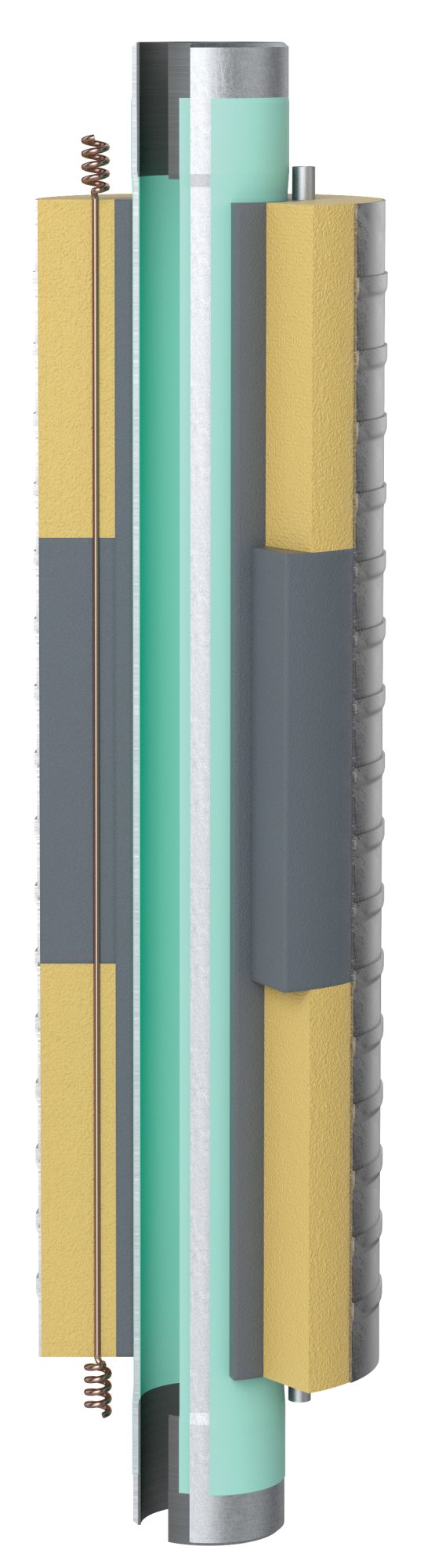

1. The metalized coating of pipe end sections вis made of thin-walled heatresistant stainless bushings and is designed for corrosion protection of the welded seam inner surface and the weld adjacent zone.
2. Skin effect system is used when it is necessary to protect against freezing, as well as for start heating and maintaining the temperature of the transported product.
3. External insulation is made of galvanized steel, as well as light stabilized polyethylene, for above-ground and subsurface pipelining.
4. Fire protection inserts are made of non-flammable heat-insulating material and are installed in order to comply with fire safety regulations when operating pipelines.
5. Rapid remote insulation control system allows to define a place of possible pipeline rupture (with accuracy up to one meter) by the use of coating insulation resistance measurement method
6. Thermal insulation is made of polyurethane foam or two-layer combined insulation with a thermal conductivity of up to 0.033 watts per meter Celsius Allows to maintain the temperature of the transported agent
7. Internal and external polymer powder coating is made to protect the pipe coating from corrosion and improve the pipeline performance
Advantages
• Reliable performance specifications of anti-condition coatings are guaranteed by application in factory conditions and 100% quality control.
• Lowest heat conductivity among thermal insulators
• Construction of pipelines independent of weather conditions
• Wide possibilities for combining different types of coatings
