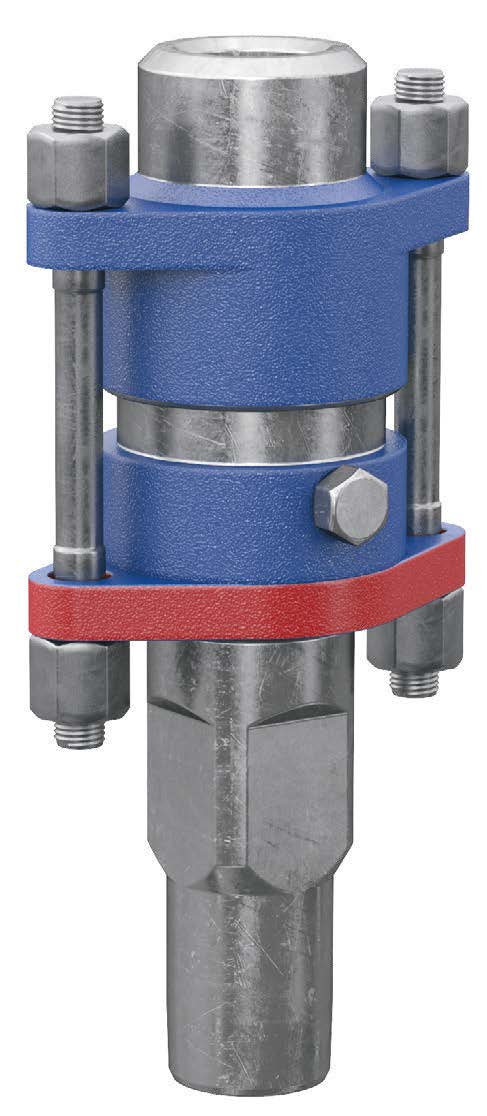

Cable transit AFK-2x21.F

Order

Ask a Question

Annually various types of products are awarded with high-quality marks in «The Best Goods and Services of the Republic of Tatarstan» and «100 Best Products in Russia» competitions.

TMC Group Managing Company LLC manufactures and supplies Cable transit AFK-2x21.F.

Details

Purpose

Cable transit AFK-2x21.F is a device intended for sealing ESP cable in wellhead casing heads of producing wells. The cable transit has a double stuffing-box seal. The cable transit design allows the stuffing-box crimping after installation thereof on the well.

Characteristics

Specification	Value
Operating pressure, MPa (kgf / cm2)	21 (210)
Connecting thread	Tubing 60 GOST 633-80
Type	double seal
Seal types, in:
Cable gland seal (cable 3x10 mm2) SKV 53.64.47.210	3×8 mm
Cable gland seal (cable 3x16 mm2) SKV 53.64.47.210	3×9 mm
Cable gland seal (cable 3x25 mm2) SKV 53.64.47.210	3×10 mm
Cable gland seal (cable + a drop tube 4x16 mm2) SKV 53.64.47.210	4×9 mm
Well medium according to GOST 13846-89 Material class	К1
Temperature of operating medium, max, °C	120
Working medium	oil, natural gas, process water, drilling mud
Limit values of ambient operating temperatures, °С	from -60 to +40
Overall dimensions, in: - length - width - height	180 145 373
Weight, kg	13
