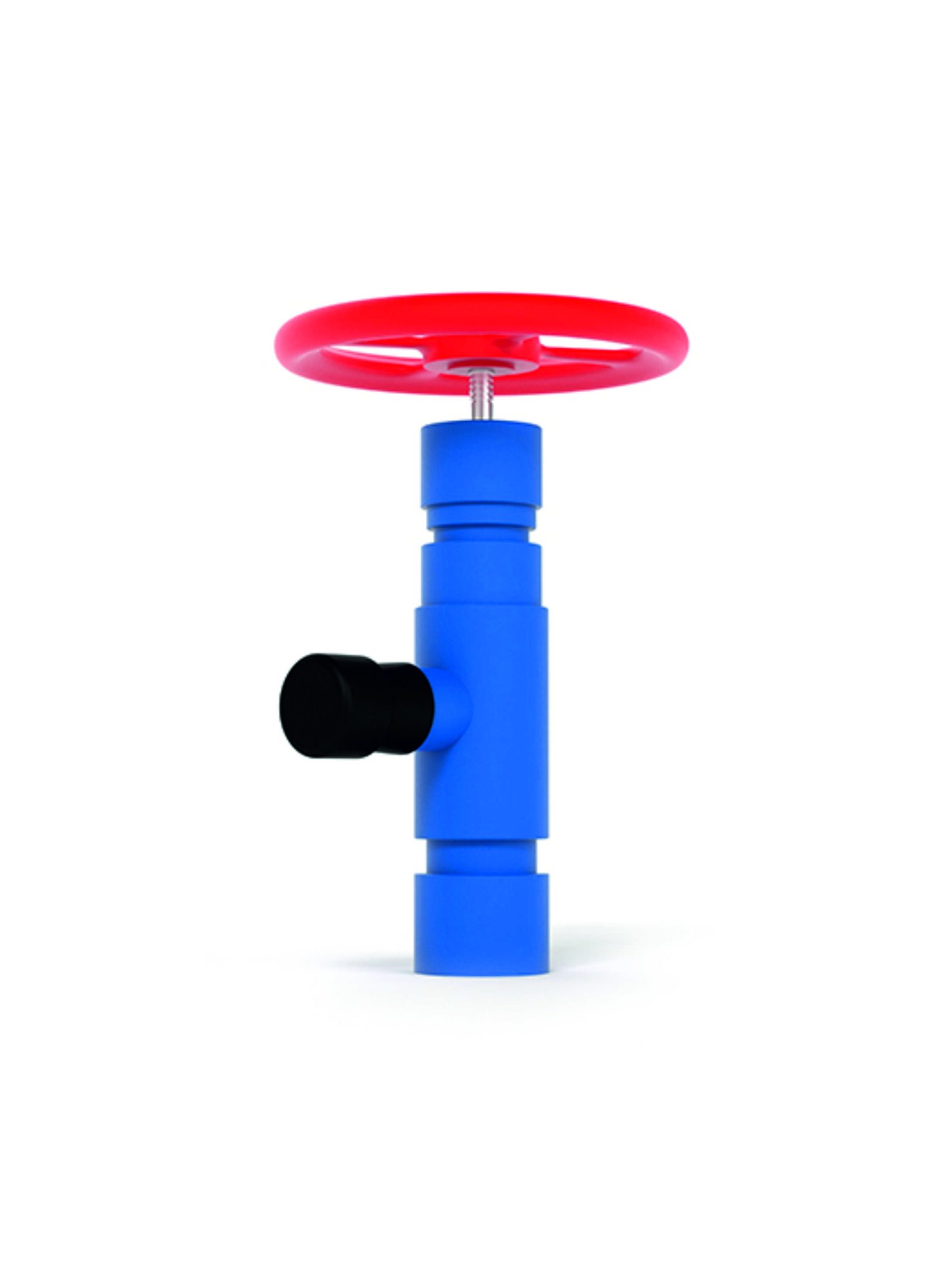

Angle valve VU 140x50

Order

Ask a Question

Annually various types of products are awarded with high-quality marks in «The Best Goods and Services of the Republic of Tatarstan» and «100 Best Products in Russia» competitions.

TMC Group Managing Company LLC manufactures and supplies Angle valve VU 140x50.

Details

Purpose

Angle valve is designed for closing the passages of oil and water pipelines.

Characteristics

Working pressure, MPa (kgf/cm2)		14 (140)
Nominal bore, mm		50
Working medium		Industrial water, oil, petroleum products
Connecting thread		Tubing string 60 GOST 633-80
Valve sealing class		A per GOST 9544-93
Overall dimensions, mm	Length	370
	Width	270
Working medium temperature, oC No more than		+100°С
Mass, kg		15
